LOTUSRC PTZ-E 2 Axis Camera Brushless Gimbal f Sony NEX Series camera Free Ship

  free shipping to worldwide

More details

PTZ-E 2 Axis

Availability: In stock

10 items in stock


Welcome: You are bidding : LOTUSRC PTZ-E 2 Axis Camera Brushless Gimbal for Sony NEX Series camera (SONY NEX Camera is NOT included)

Brief introduction:

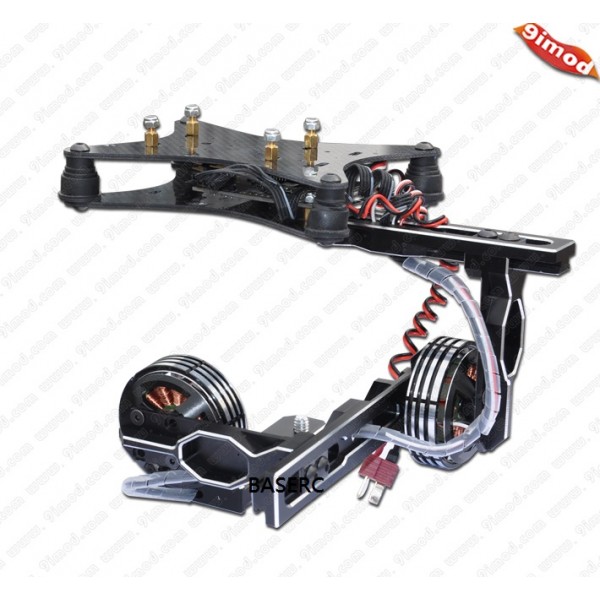

PTZ-E is a new camera gimbal for ILDC, it is made by aluminum alloy. light weight and easy to use. it is can use for Sony NEX-5 and related Sony products. it is very stable for aero photography. this camera gimbal drive by brushless motor, control the roll and pitch of camera, even on the high speed flight, also can confirm the stable . (Sony NEX Camera is NOT included)

Structure features:
1.Aluminum alloy material ,half side signal frame, light and firm
2.Brushless motor direct drive.
3.Adjust center of gravity of camera. for different shot .
4.Active self stabilization ,a closed loop test, stabilization more precisely

Technical parameters
1.Support sensitivity parameter adjust and software 3D pose display.
2.Support stick speed mode and position mode
3.Support receiver: common receiver, PPM Receiver,DSM2/DSMJ/DSMX receiver.
4.Support radio:PPM/PCM/2.4Ghz
5.Working voltage: DC 7.4V-14.8V(suggest 11.1V.3S)
6.Working current:200Ma-2A(It is depends on voltage and motor rate)
6.Working temperature:-15—65
8.Sensor:MPU6050 2 axis servo, accelerometer
9.Max angel speed:2000/SEC
10.Max speed:16g
11.Control HZ:1600Hz
12.Motor drive rate:8/32Khz
13.Control precision:0.1
14.Control angel range:
15.Control angel range:-45-45(roll)-90-90(pitch)
16.Software: Russia Alexmos right version. it can be upgrade new firware.

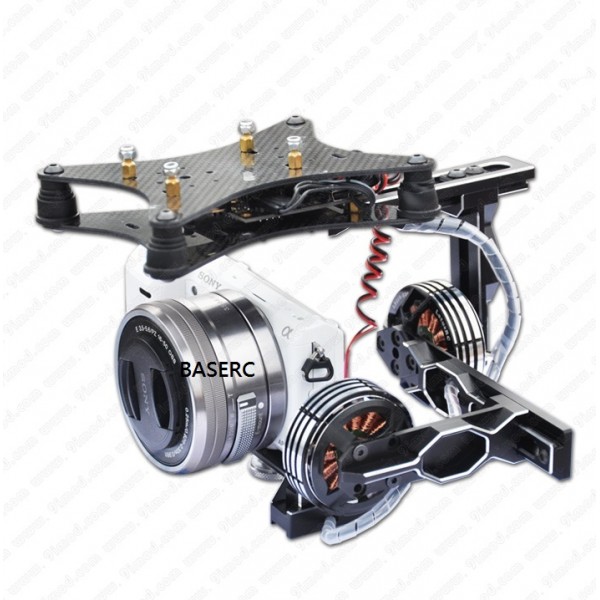

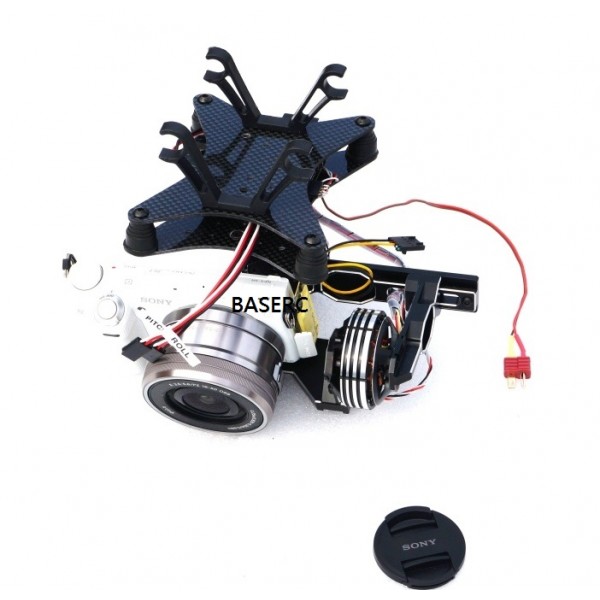

Support camera:
SONY NEX-3n、3nl、3ny.
SONY NEX-5n、5r、5t.
SONY NEX-7、7n、7r.

Support Lens:
16F/2.8 Prime wide angle lens.16-55F Convertible lens (it is did not support convertible lens)

Camera gimbal can not output film picture. should supervise it on the ground. should add HDMI convert AV. the mould will be provided soon(option)
