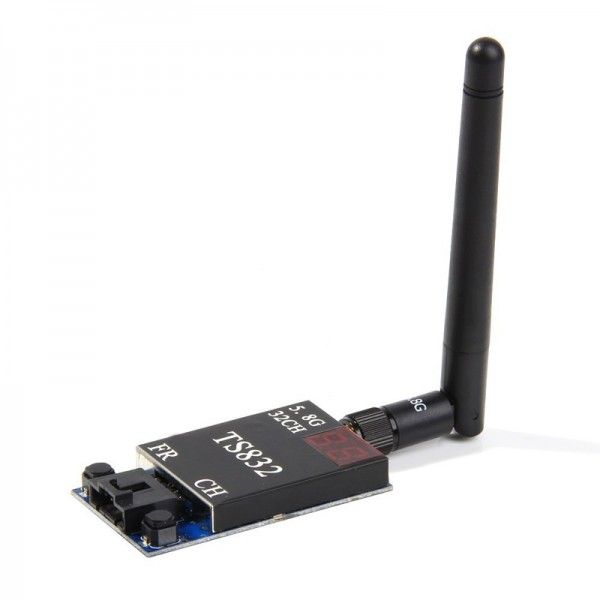

Boscam TS832 32Ch 5.8G 600mw 5km Wireless Audio/Video Transmitter for FPV RC

• 32 channels: Cover A, B, E bands and F band (Airwave band), 4 bands and all frequencies compactable;

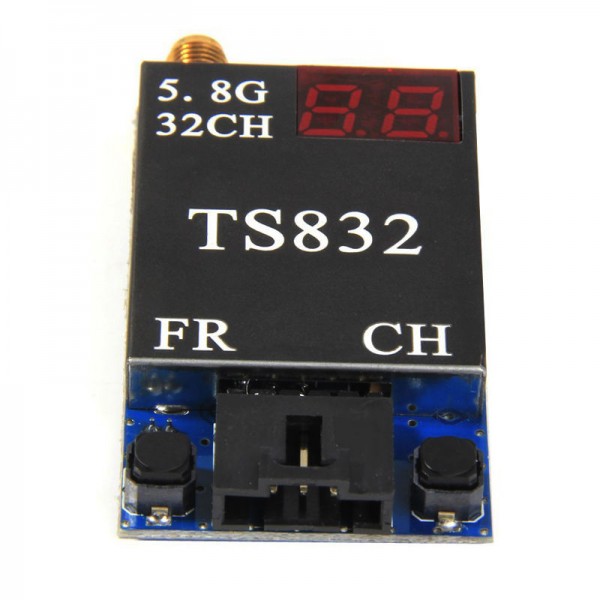

• Two switching buttons: CH button for frequencies channels switching, FR button for frequencies bands switching;
• Two digits display: one for CH and the other for FR, real-time positioning which frequency band and which channel received;
• Power off memory: Replay the very last frequency band and channel
• Independent video and audio signal outputs

• Output Power:600mW
• Transmission Distance: Min. 5KM line of sight
• Frequency Control:Built-in frequency & phase lock loop
• AV input:Analog AV signal input

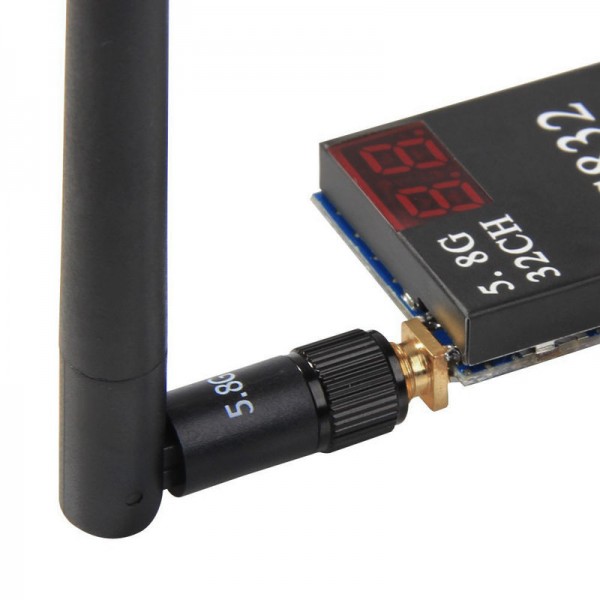

• ANT connector:SMA (needle inside)
• Power Supply: DC 7-16 volts
• Current Supply:220mA at 12V
• Video bandwidth: 8M
• Audio bandwidth : 6.5M
• Dimension: 54*32*10mm
• Weight:35g

Package Included:
