Boscam 32Ch 5.8G 600mw 5km Wireless AV Transmitter TS832 Receiver RC832 for FPV


  free shipping to worldwide

More details

Availability: In stock

10 items in stock

$76.90

30 other products in the same category:



Description :

  • FPV 5.8G 600mW A/V 32CH Transmitting/Receiving System TS832 + RC832 RP-SMA
  • THIS IS THE NEW 32-CHANNEL EDITION OF 5.8G 600mW A/V WIRELESS SYSTEM.



Features:

  • B- 32 channels: Cover A, B, E bands and F band (Airwave band), 4 bands and all frequencies compactable;
  • Two switching buttons: CH button for frequencies channels switching, FR button for frequencies bands switching;
  • Two digits display: one for CH and the other for FR, real-time positioning which frequency band and which channel received;
  • Power off memory: Replay the very last frequency band and channel
  • Independent video and audio signal outputs



Specification :

  • Video format supported: NTSC/PAL
  • Antenna connection: RP-SMA, jack (module side, both TX and RX)

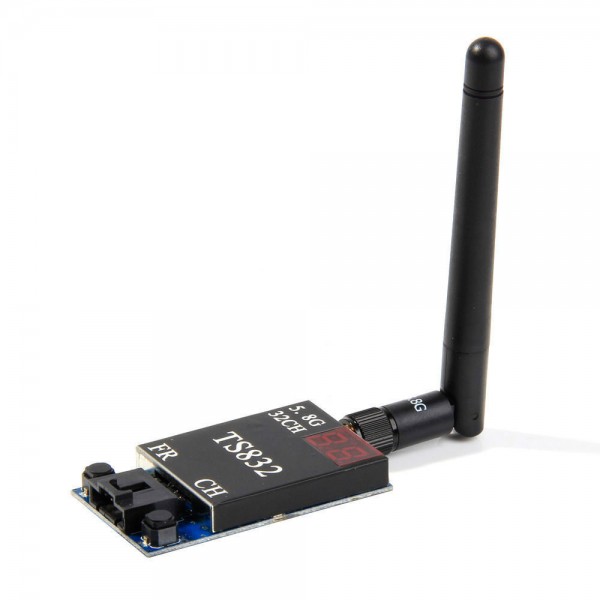

TX TS832 Specification :

  • Power input: 7.4-16V (3S Lipo suggested)
  • Transmitting power: 600mA
  • Antenna gain: 2db
  • Working current: 220mA at 12V
  • Video bandwidth: 8M
  • Audio bandwidth : 6.5M
  • Dimension: 54x 32x 10mm(excluding antenna)

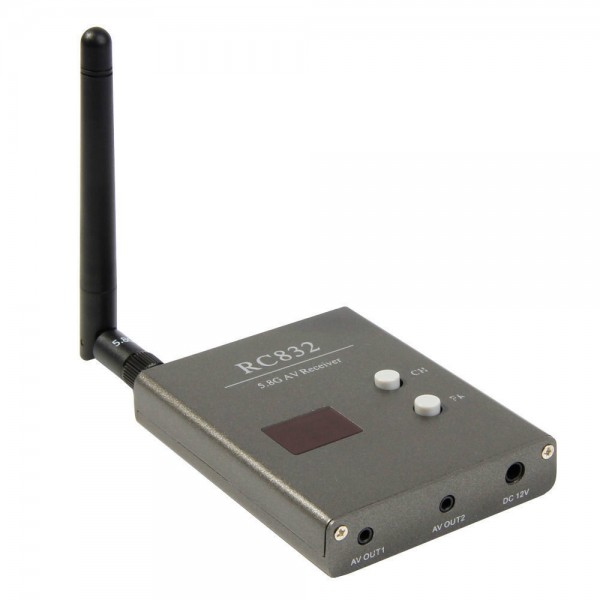

RX RC832 Specification :

  • Power input: 12V
  • Working current: 200mA max
  • Antenna impedance: 50ω
  • Antenna gain: 2db
  • Video impedance: 75ω
  • Video format: NTSC/PAL auto
  • Dimension: 80x 65 x15mm
  • *Note: TX antenna must be installed properly before it is switched on, power on without install antenna, or a improper antenna was used may easily burn the TX, and such damage is not covered by warranty.

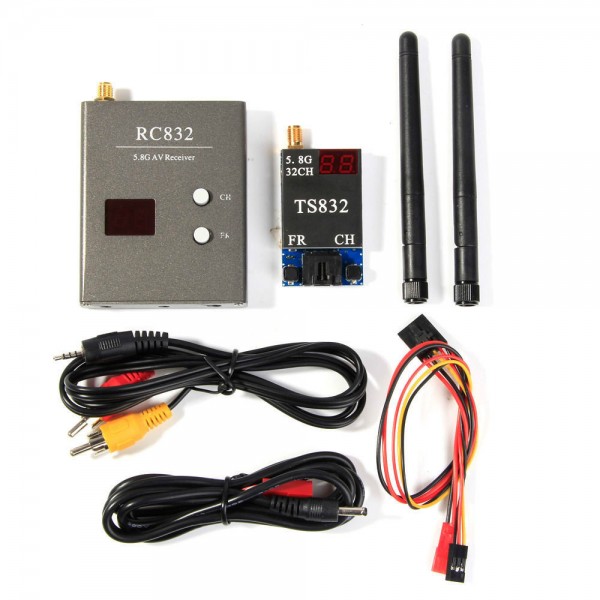

Item Included:

  • 1 x transmitting unit (TX)
  • 1 x receiver (RX)
  • 2 x antennas (2db)
  • 1 x basic wires set
