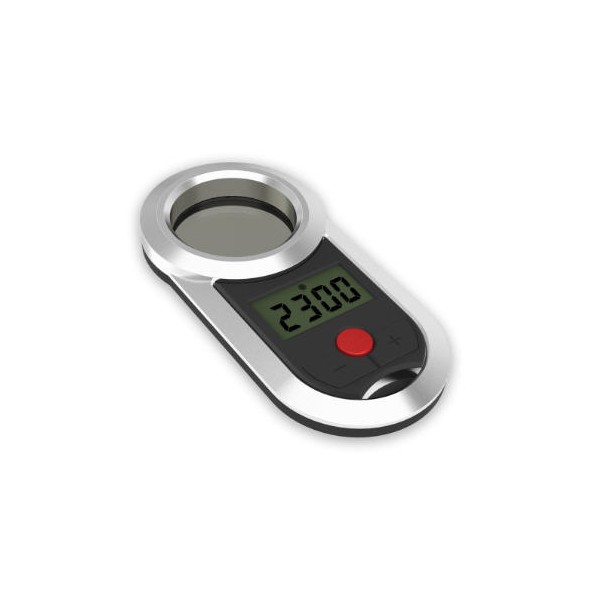

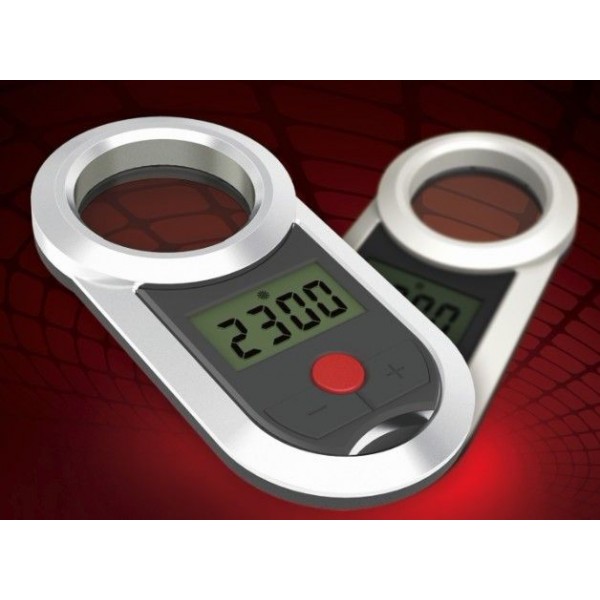

RCD3063 Magic mirror Helicopter optical tachometer

RCD3063 Magic mirror Helicopter optical tachometer

Specification :

• RPM Measurement Range: 800 - 4200RPM
• 4 - digit LCD screen display
• Accuracy: +/－ 1 RPM
• 10 Level aperture adjustment
• Ultra－wide viewing angle
• High－speed electronic shutter
• Measurement remotely and non－contact
• Simultaneous measurement of five sets of RPM
• Super bright and stroboscopic light, which is suitable for dim indoor environment.
• It can measure RPM for tiny objects.
• Shut off automatically after no operation for 30 seconds.
• Power supply:  CR2032 / LIR2032 button battery (included)
• Operating Battery Drain: 3mA, Idle Drain: 10uA
• Low Battery alarm
• Weight: 40g

Application:

• Vibration frequency measurement
• RPM main rotor measurement for all models helicopters
• Calibrate timing belt
• The speed measurement of vehicle wheels
• Dynamic balancing calibration for fly wheels
