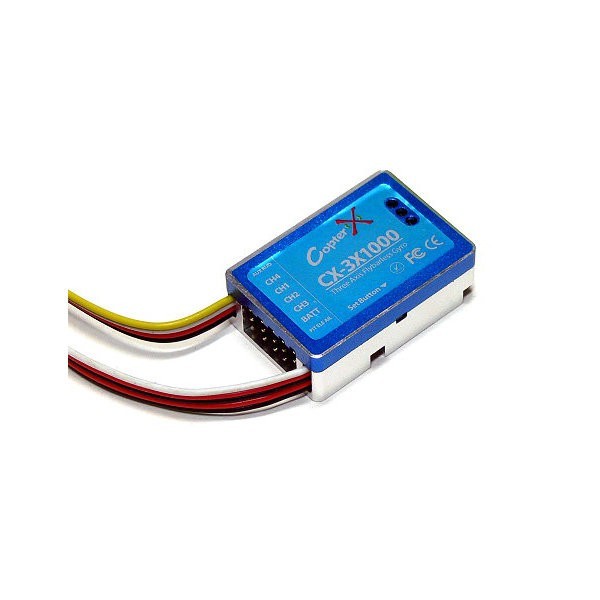

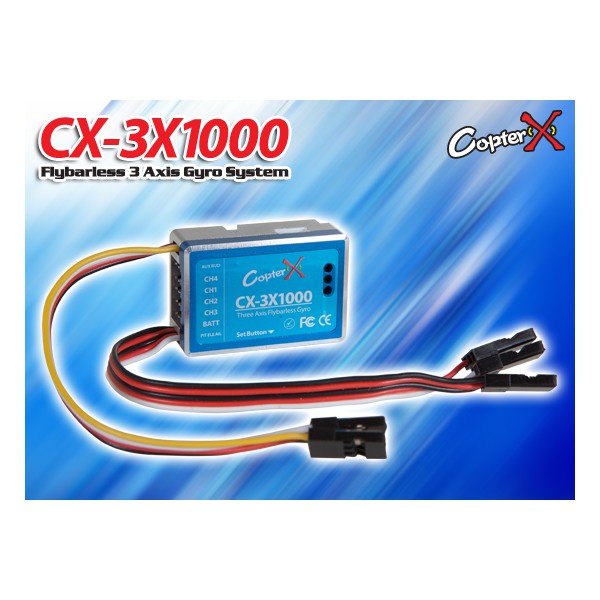

CopterX RC Model CX-3X1000 R/C Hobby Helicopter 3 Axis Flybarless Gyro

More info

Introduction

CopterX high performance 3 axis gyro CX-3X1000. With compact design, micro processor, anti vibration aluminum alloy casing, easy to use setup box, and future firmware update available via PC. Make this one of the most advance 3 axis gyro which will work with anything from EP100 to large scale nitro helicopter. Please keep a copy of this manual for future reference. Enjoy the high performance flight offer by CopterX CX-3X1000 gyro system.

Specification

Operating voltage: DC 3.5V-9V
Operating current drain: 60mA
Operating temperature: -15 ~65
Maximal angular velocity: 800 degrees/sec
Tail servo compatibility: 1.52ms analog, 1.52ms digital, 760us digital, 960us digital
Swash plate servo compatibility: 1.52ms analog servo, 1.52ms digital servo
Radio compatibility: PPM, PCM, 2.4G
Supporting firmware upgrade
Supporting Multi-Blade Rotor Head
Dimensions: 37.2 x 25.2 x 13mm
Weight: 20g
